A beautiful cast bronze flag pole socket to grace the stern of any vessel. 1" pole socket is mounted with three #10 fasteners.

POLE ANGLE = 73 DEGREES

Solid bronze. A 3" ID round configuration for easy installation. Low profile design with blended surfaces for chafe protection.

Mounts with three 1/4" fasteners.
Mounts in a 3.25" diameter cut-out.

These rugged cast bronze padeyes have several uses. Dead-ending boom sheets, terminating lifelines, and attaching deck blocks are just a few of the jobs the handy Spartan padeye handles.

Mounts with four 1/4" Fasteners.

These rugged cast bronze padeyes have many uses. Dead-ending boom sheets, terminating lifelines and jacklines, and attaching deck blocks are just a few of the jobs the handy Spartan padeye handles.

Mounts with four 1/4" Fasteners

Base diameter 2.75".

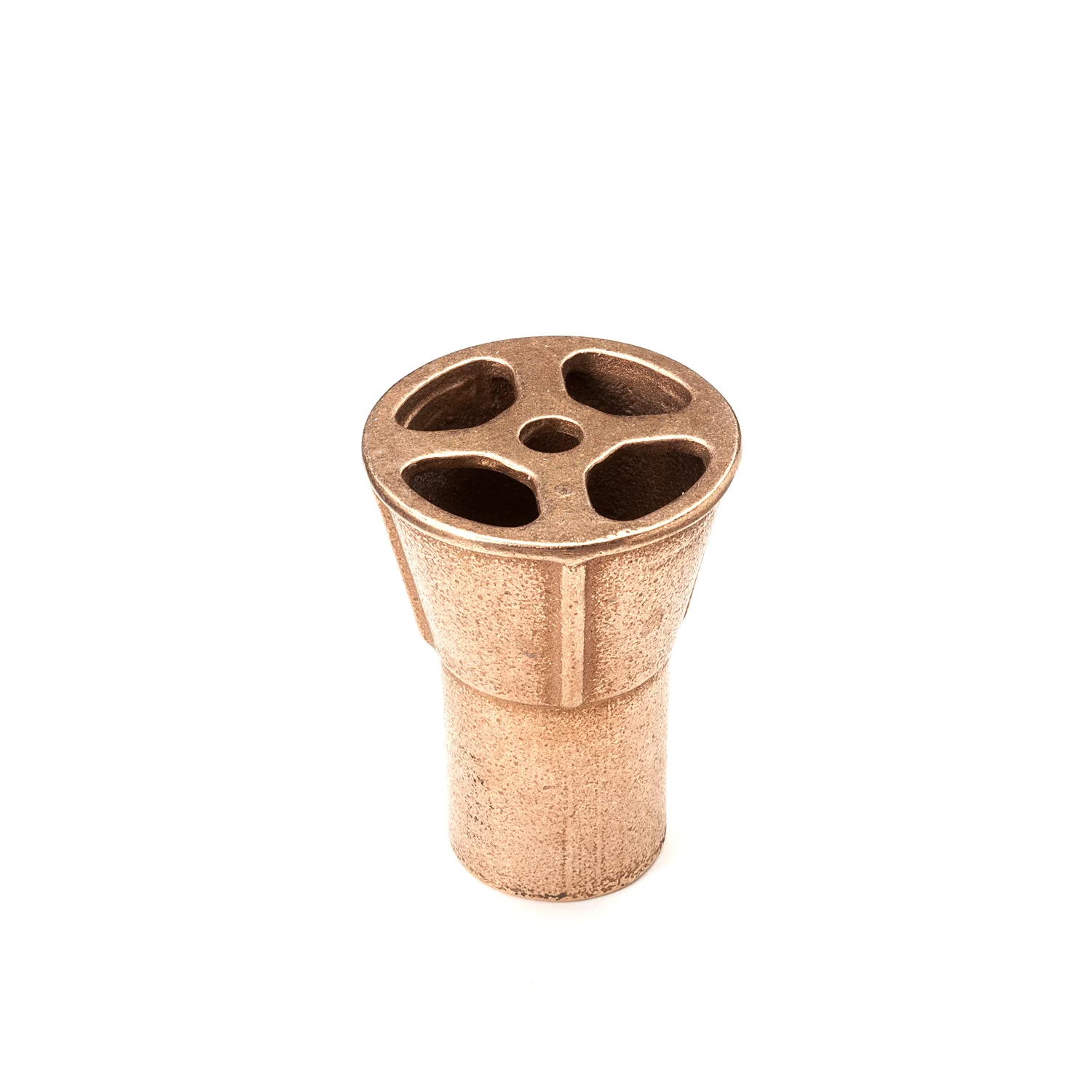

Cast bronze. Scupper drains provide hose attachments for drain hose. A top grate is cast into the piece offering a neat flush finish when glassed into place. No screw-on tops, no cut-outs, and no locking nuts needed.

Cast bronze fitting provides for the attachment of a drain hose. A top grate is cast into the piece offering a neat flush finish when glassed into place. No screw-on tops, no cut-outs, and no locking nuts needed.

Cast bronze. Complete with flange nut for installation. Ribbed bronze adapter holds hose securely and allows for double clamping.

Fits flush into a recessed cavity that can be molded utilizing the respective mold plug.

Cast bronze. Complete with flange nut for installation. Ribbed bronze adapter holds hose securely and allows for double clamping.

Fits flush into a recessed cavity that can be molded utilizing the respective mold plug.

Cast bronze 2.5" circular grate. Installs flat with four #10 fasteners.

Bronze stanchion base. 1" ID socket.

Outer and inner backing plates sold separately.

STANCHION ANGLE = 5 DEGREES

With the Spartan winch stand you can add your first set of winches to your coaming for genoa or jib sheets. Also ideal as a second set of winches for spinnaker work.

Compete winch stand assemblies are solid cast bronze designed to easily mount on wood coamings. Each is drilled with mounting holes for easy installation.

#6
Dim. A = 4.87"; Dim. B = 4.25"; Dim. C = 1"; Dim. D = 4.25"; Angle 4°; 1/4" fasteners.

#7
Dim. A = 4.75"; Dim. B = 5.25"; Dim. C = 3"; Dim. D = 5.25"; Angle 3°; 5/16" fasteners.

#10
Dim. A = 5.62"; Dim. B = 6.50";Dim. C = 4.0"; Dim. D = 6.62"; Angle 1°; 5/16" fasteners.

#16
Dim. A = 6.12"; Dim. B = 5.75"; im. C = 3.75"; Dim. D = 46"; Angle 1°; 5/16" fasteners.

#30
Dim. A = 6.62"; Dim. B = 5.43"; Dim. C = 4.12"; Dim. D = 6.50"; Angle 1°; 5/16" fasteners.

Cast bronze with a smooth tumbled finish. 1/2 inch inside diameter. Two mount holes for #10 fastener.
