Ports/ Screens/ Gaskets
Round series in cast bronze with 1/4" tempered glass sealed in place with a silicone seal.
Spigot depth is .625"
Mounts with #10 fasteners.
Glass = 1/4" tempered
Solid cast bronze construction mated with the best in glass and neoprene gaskets add up to a rugged high-performing port. Stainless steel hinge pins hold the port pieces together and full cast-bronze knobs provide proper dog-down and safety from sharp edges.
Standard Series features 1/4" tempered glass and a 1/2" solid neoprene gasket. Full spigot drainage. (Order screen separately.)
14" X 5" OVAL PORT P560
Opening = 13.5" x 4.75"
Cut-out = 14" x 5.25" Fasteners - #10
Spigot length = 1.5"
Weight = 14 lbs.
11 X 4 RECTANGULAR PORT P579
Opening = 11.25" x 4.25"
Cut-out = 11.75" x 5" Fasteners - #10
Spigot length = 1.62"
Weight = 14 lbs.
17 X 5 RECTANGULAR PORT P580
Opening = 17.25 X 5.25
Cut-out = 17.75 X 5.88 Fasteners - #10
Spigot length = 1.62"
Weight = 18 lbs.
Our Blue Water Series ports are built with the integrity required for offshore cruising. Adjustment screws in the hinge boss provide for glass-tension adjustment. Extra-thick tempered glass will take an aggressive wave slap.
Solid cast bronze construction mated with the best in glass and neoprene gaskets add up to a rugged high-performing port you can count on. Stainless steel hinge pins hold the port pieces together and full cast-bronze knobs provide proper dog-down and safety from sharp edges. Full spigot drainage.
Screens are included.
7" x 14" Rectangular Port P585
Opening = 13.625" x 6.625"
Cut-out = 14.5" x 7.625"
Fastener = 1/4"
Glass thickness = 3/8"
Spigot length = 1.75"
Weight = 19.5 lb.
6" x 9" Oval Port P586
Opening = 9.125" x 5.25"
Cut-out = 9.875" x 6.25"
Fastener = #10
Glass thickness = 5/16"
Spigot length = 1.75"
Weight = 11.25 lb.
5" x 8" Oval Port P587
Opening = 7.50" x 4.375"
Cut-out = 8.375" x 5.375"
Fastener = #10
Glass thickness = 5/16"
Spigot length = 1.75"
Weight = 10.50 lb.
Spartan replacement screens for our Standard Series (P560, P579, P580) and Blue Water Series (P585, P586, P587) ports.
If you are replacing screens for Cape Dory sailboats built 1980 and after P560 screens are used, except Intrepid model Cape Dory sailboats and Robinhood 33 motor boats use P585 screens.
CD300 motorsailers use P579 screens.
Genuine Spartan replacement parts for Spartan ports.
Cast bronze.
3/8" Knob fits Standard Series P560, P579, P580
7/16" Knob fits Blue Water Series P585
Genuine Spartan replacement port dogs.
3/8" dog fits P560, P579, P580, P586, P587
7/16" dog fits P585
Please choose the Model number for your port in the drop-down menu.
Made of high quality neoprene.
If you are replacing gaskets for Cape Dory sailboats made 1980 and after with bronze ports, P560 is the port size, except Intrepid model Cape Dory sailboats and the Robinhood 33 motorboat use the P585 size gasket.
CD300 motorsailers use P579 gaskets.

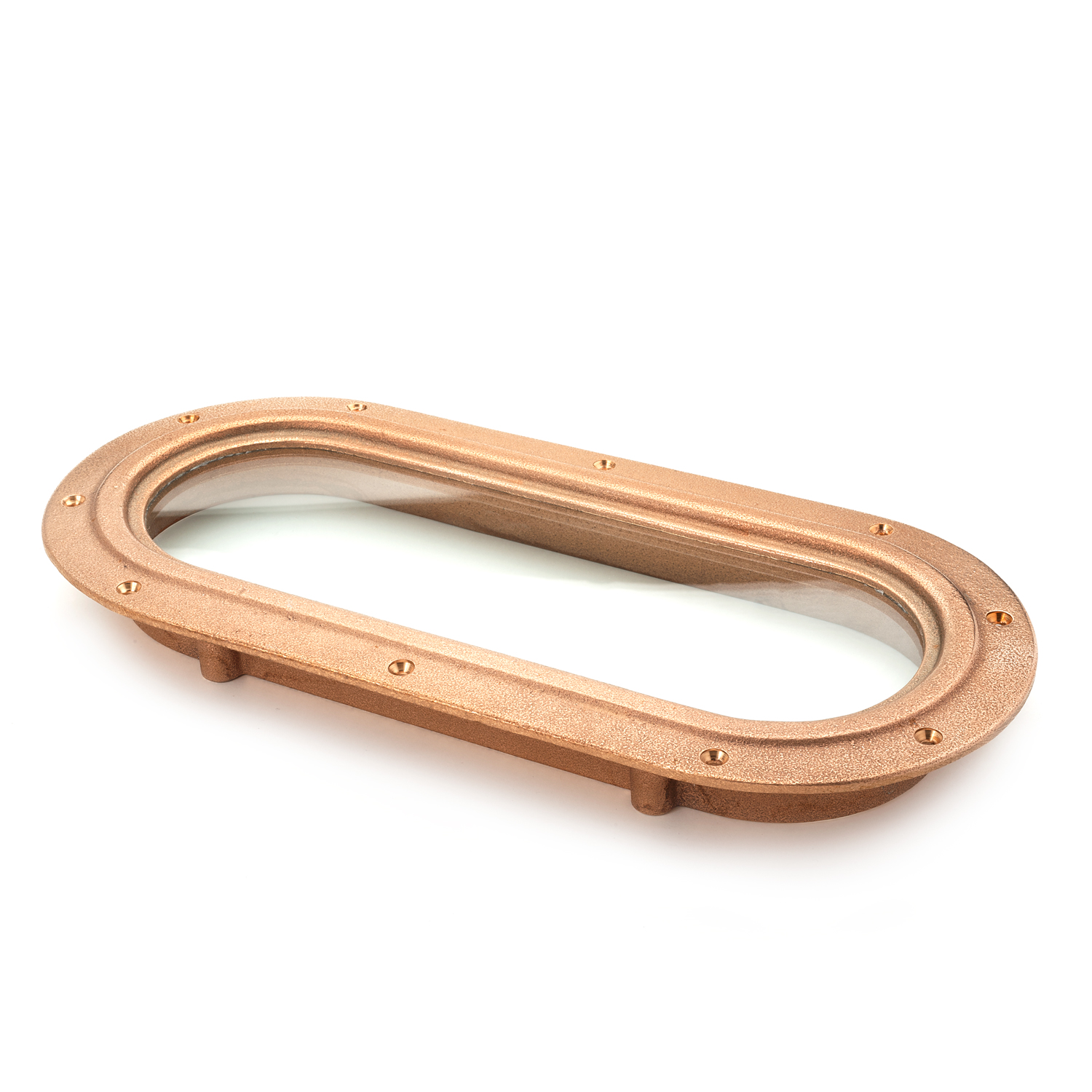

Solid cast bronze construction. Tempered glass is retained in a cast flange with a silicone seal. Finished rim.
Spigot length is 1.5".
Mounts with #10 fasteners.
Cut-out = 14" x 5.25" (same as model P560 opening port)
Glass = 1/4" tempered
Weight = 9.5 lb.
