Standard Series Opening Ports

Standard Series Opening Ports

from 449.00

Solid cast bronze construction mated with the best in glass and neoprene gaskets add up to a rugged high-performing port. Stainless steel hinge pins hold the port pieces together and full cast-bronze knobs provide proper dog-down and safety from sharp edges.

Standard Series features 1/4" tempered glass and a 1/2" solid neoprene gasket. Full spigot drainage. (Order screen separately.)

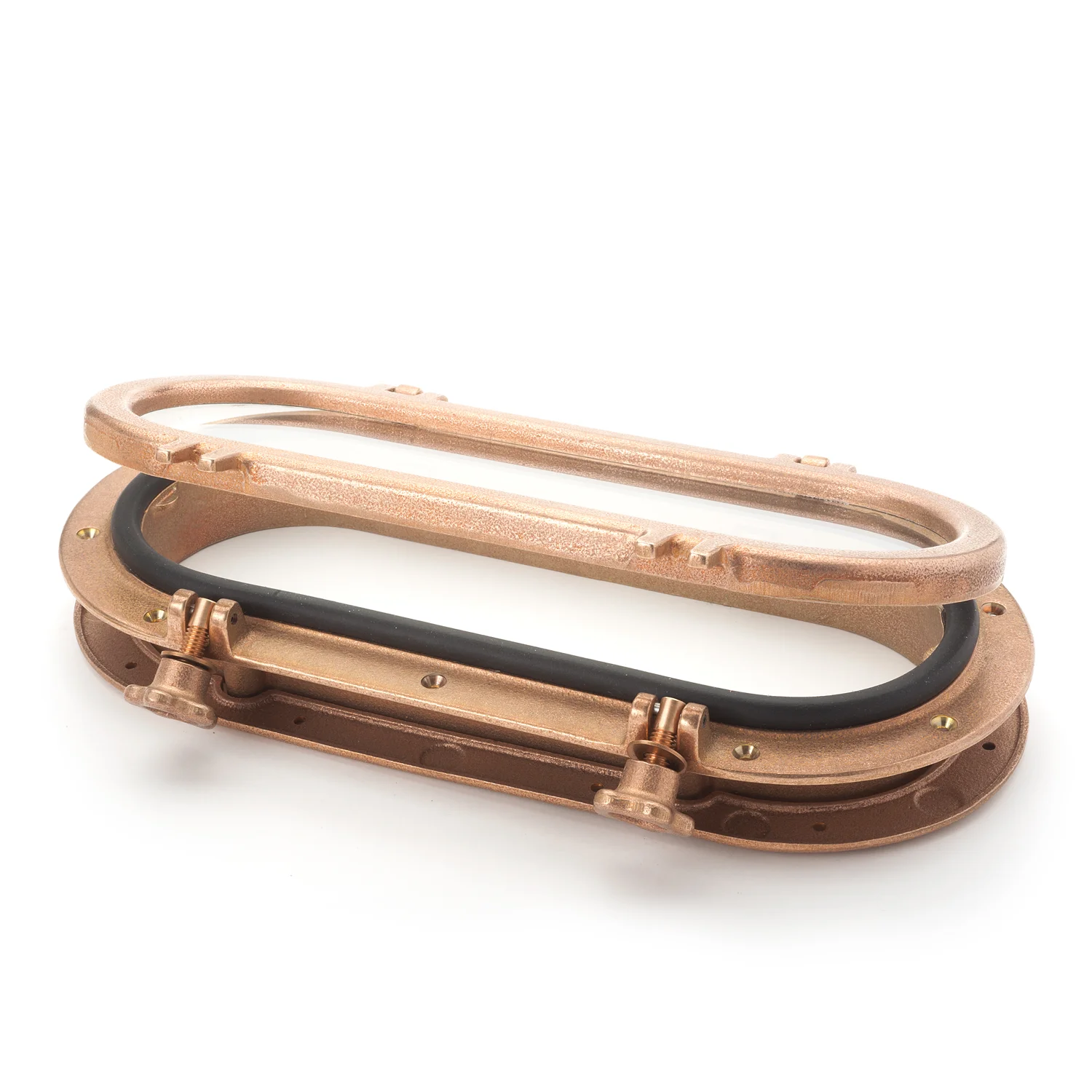

14" X 5" OVAL PORT P560

Opening = 13.5" x 4.75"
Cut-out = 14" x 5.25"                                                               Fasteners - #10
Spigot length = 1.5"
Weight = 14 lbs.

11 X 4 RECTANGULAR PORT P579

Opening = 11.25" x 4.25"
Cut-out = 11.75" x 5"                                                               Fasteners - #10
Spigot length = 1.62"
Weight = 14 lbs.

17 X 5 RECTANGULAR PORT P580

Opening = 17.25 X 5.25
Cut-out = 17.75 X 5.88                                                              Fasteners - #10
Spigot length = 1.62"
Weight = 18 lbs.
