Bow Roller for Bowsprit Assembly

Bow Roller for Bowsprit Assembly

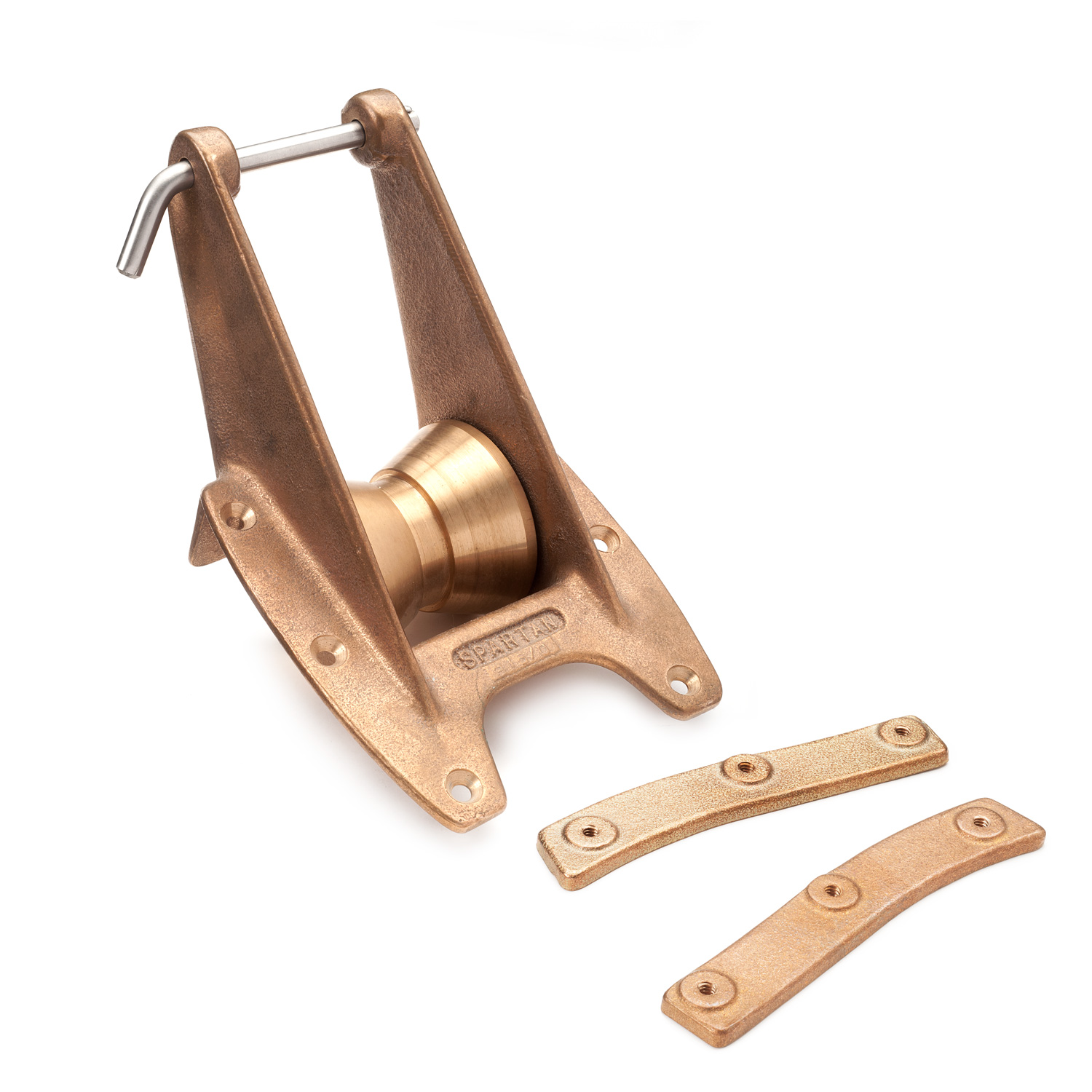

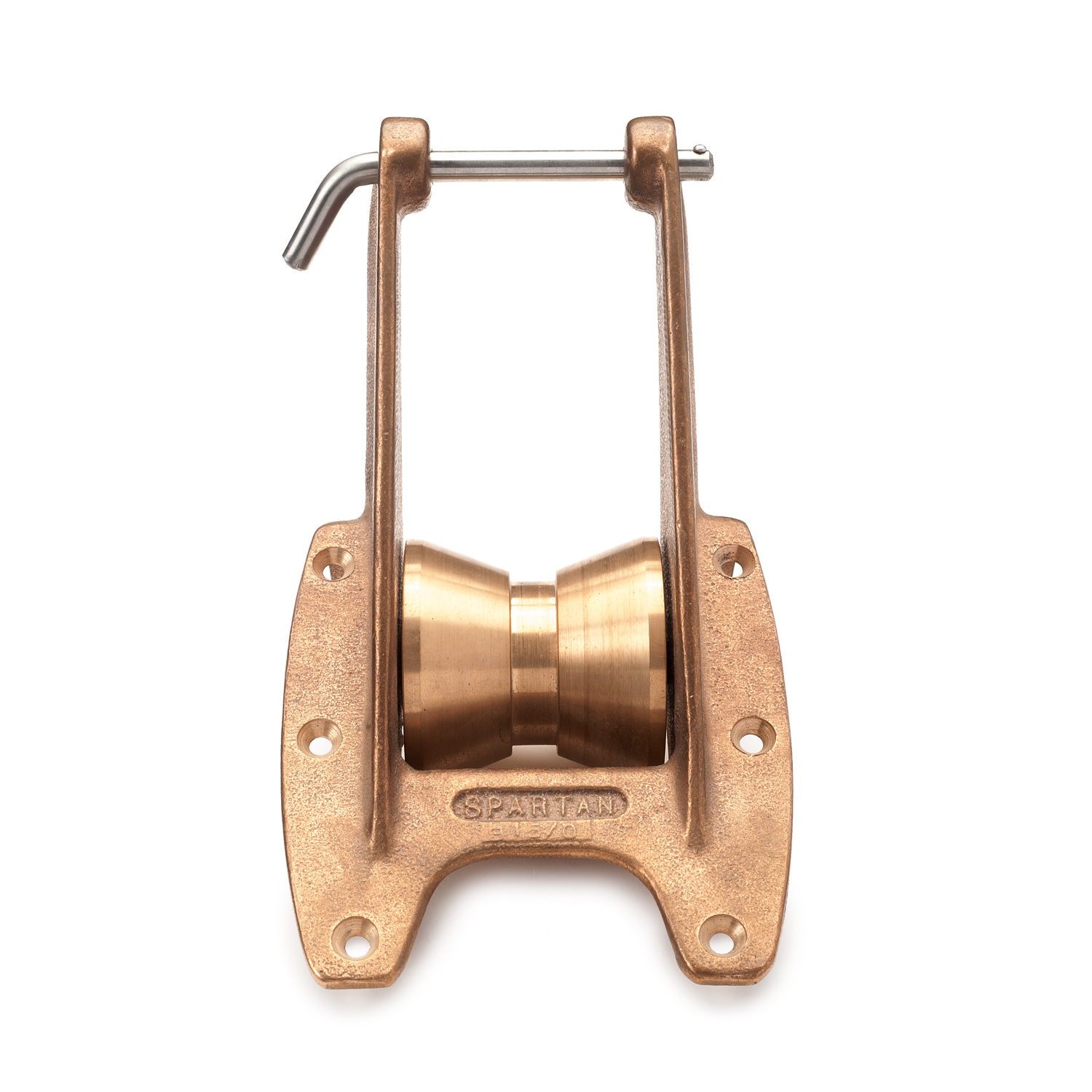

This solid cast bronze bow roller combines rugged construction with superior visual appeal. Recessed into a 3.75" x 3.75" cut-out in the leading edge of the bowsprit. Anchor, chain, and rope ride on a 3" bronze roller. A 3/8" stainless steel slide bolt provides easy access to the roller canal and locks to retain the anchor rode captive.

Six 1/4-20 FHMS bolt through the bowsprit and into two bronze threaded backing plates. The backing plates are provided. Use the Spartan Anchor Shaft Bracket to complete the anchor hold system when the anchor is not in use.

Available with port or starboard configurations, the pin extracting out on the respective side.

Pin Extraction:
